• Ultrasonic Sonicator
  • YP-S1800
  • Power 1800W, crushing capacity 0.5-2000ml.
  • YP-S1800
  • Ultrasonic Sonicator
  • Power 1800W, crushing capacity 0.5-2000ml.
Typical applications include nanotechnology (production of nanomaterial particles and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP analysis, emulsification, deagglomeration and disaggregation, as well as applications in the field of sonochemistry.
Product Introduction

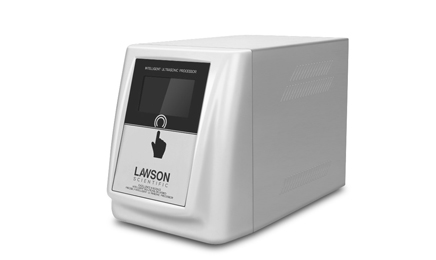

1800W Ultrasonic Sonicator can safely process various organic and inorganic materials from 250 microliters to 2000 milliliters*.
YP series ultrasonic products have typical applications including nanotechnology (production of nano-particle materials and graphene dispersions), cell disruption, sample preparation, homogenization, ChIP analysis, emulsification, deagglomeration and disaggregation, as well as applications in sonochemistry processing.

Product Features
● Energy and temperature setting point control
● Digital circuitry + 7-inch wide screen (touch)
● Automatic frequency tuning accurate to 1Hz + real-time monitoring of sample temperature
● 99-hour working time setting
● Variable power output control from 1 to 99% adjustable
● Electric lifting + jog setting
● Frequency automatic search accuracy ±1Hz and real-time display

Technical Parameters
Model: YP-S1800
Power: 1800W
Power Control Range: 1~100%
Processing Volume: 0.5~2000ml
With Digital Intelligent Ultrasonic Generator: Frequency Automatic Search
Resonant Frequency: Real-time Tracking and Display
Frequency Tracking Accuracy: 1Hz, Real-time Tracking and Display
Electric Lifting Soundproof Box: The working platform adopts electric lifting and lighting device
Display Mode: 7-inch TFT Color Screen
Frequency Range: 18~25KHz
Total Time Range: 00:00:01~999:99:99 (hour:minute:second)
Output Time: 0.1~99.9 (seconds)
Gap Time: 0.1~99.9 (seconds)
Output Duty Cycle: 0.1~99.9%
Material Overtemperature Protection: 1. Temperature Setting: 0-99℃
2. When the material temperature reaches the set value, ultrasound will stop. When the material temperature is 2℃ below the set value, ultrasound will automatically resume working.
Document storage: 99 sets
Random swing rod: Φ20
Optional swing rod: Φ2 / Φ3 / Φ6 / Φ10 / Φ15
Protection alarm: Over temperature, over current, overload, abnormal transducer, etc.
Power supply: AC110/220V F50/60Hz
Machine size: 280*280*495
Machine weight: 13.3KG
Main unit + transducer weight: 15.9kg
External package size: 534*295*435mm

Other Parameters
Transducer weight: 1680 g
Transducer size: 256mm×76.5mm
Random amplitude rod weight: 495 g
Random amplitude rod size: 140mm×6mm
Rod material: Titanium Alloy Ti-6Al-4V

Probe Type Selection
Model Broken cell capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-150ml
Φ10mm 10ml-600ml
Φ15mm 50ml-1000ml
Φ20mm 100ml-2000ml

Single Page - Color Page
Name: Author: Action:
Ultrasonic Sonicator YP-S1800 Ultrasonic Download

Related products
Name: Model:
Hand-held Ultrasonic Cell Crusher YP-S1800
Ultrasonic mixer YP-S1200
ultrasonic extraction YP-S900
Product List
YP-S1800 Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Special Wrench (used for disassembling the amplitu Set
Special Thermostatic Circulating Reaction Cup Piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
