• Handheld Ultrasonic Cell Disruptor
  • UP-250S
  • Power 250W, Crushing capacity 0.5-100ml
  • UP-250S
  • Handheld Ultrasonic Cell Disruptor
  • Power 250W, Crushing capacity 0.5-100ml
Handheld Ultrasonic Cell Disruptor can be used for the disruption of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, degassing, cleaning, and accelerating chemical reactions, etc. It is widely applied in the fields of biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology, and so on.
Product Introduction

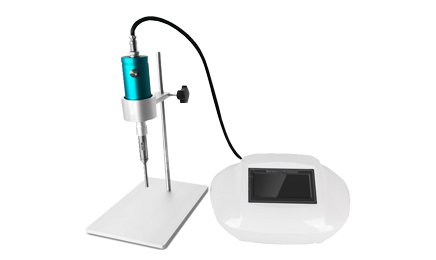

UP-250S Handheld Ultrasonic Cell Disruptor is a versatile and multi-purpose instrument that uses strong ultrasound to produce cavitation effects in liquids and perform ultrasonic treatment on materials, greatly improving the stability and reliability of the instrument. This instrument can be used for the homogenization of various animal and plant cells, virus cells, as well as for emulsification, separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reactions, etc. It is widely used in the fields of biochemistry, microbiology, pharmaceutical chemistry, surface chemistry, physics, zoology, and more.


Product Features
Can be used for 96-well ELISA and numerous small test tubes. Handheld ultrasound transducer point control ultrasound, allowing multiple samples to complete ultrasound treatment in a short time.
◆ Used for crushing animal and plant cells, bacteria, spores or tissue, extracting proteins from cells, and conducting scientific cultivation experiments for viruses and vaccines.
◆ Speed up the reaction rate of chemical, physical and other reactions, and accelerate liquid degassing.
◆ Used for scientific research analysis such as dilution of crude oil, oil-water emulsification, acceleration of crystal removal, and glass pulp preparation.
◆ Used for dispersing rare earths, various inorganic minerals, and preparing nearly nanoscale latex homogenization mixtures.
◆ Rapid and powerful high-precision cleaning of holes and blind holes in molds.


Technical Parameters
Model: UP-250S
Power: 250W
Power Range: 1-100%
Processing Volume: 0.5-100ml
Operating Frequency: 19-25KHz, automatic search range up to ±450Hz
Operating Frequency Display: Real-time display
Display Mode: 3.5-inch color LCD display
Control Mode: Automatic or manual switchable (foot switch optional)
Total Time Setting: 0.1-999 min
Pulser Time: 0.1-99.9s adjustable (gap/working)
Intermittent Time: 0.1-99.9s
Sample Temperature Protection Setting: Available (optional)
Random Amplitude Rod: Φ3
Optional Amplitude Rod: Φ2 / Φ6
Protection Alarm: Over-temperature, over-current, overload, transducer abnormality, etc.
Power Supply: AC110/220V F50/60Hz
Mainframe Size: 270*210*140 mm
Total Weight: 4.2 KG

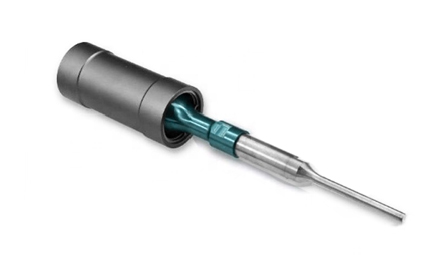

Probe Model Selection
Model Broken cell capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-100ml




Single Page - Color Page
Name: Author: Action:
Handheld Ultrasonic Cell Disruptor      UP-250S ultrasonic Download







Product List
UP-250S Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Transducer independent support pair
Temperature sensor piece
Soundproof box set
Power cord piece
Special Wrench (used for disassembling the amplitu Set
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
Optional
1
Optional
1
1
1
1
1
